Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size

Ονομασία μάρκας:	HanWei
Αριθμός μοντέλου:	HW-20-50500
Μούβ:	1 Set
τιμή:	USD / Set
Όροι πληρωμής:	T/T
Ικανότητα εφοδιασμού:	2000 Sets / year

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Place of Origin:

Shenzhen. China

Πιστοποίηση:

Cleaning Laser Beam Size:

0-300mm Adjustable

Cleaning Materials:

Carbon Steel / Stainless Steel

Laser Power:

2000W

Handheld Laser Gun Weight:

0.7 Kg

Collimation Focal Length:

Focusing Focal Length:

500mm

Adopt Laser Source:

1064~1080nm Fiber laser source

Machine Electric Consumption:

8 Kw/h about

Laser Output Mode:

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Περιγραφή του προϊόντος

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size Description:

The handheld single-motor cleaning system offers an exceptionally efficient cleaning solution. Driven by a single motor, the primary power source activates the internal impeller and other components of the cleaning mechanism. This device excels in cleaning materials like carbon steel and stainless steel, drawing water from the tank and significantly boosting its pressure. Through the spray nozzle and associated components, it generates a high-speed water jet that effectively eliminates debris from various object surfaces.

Engineered with ergonomic principles, the portable and compact cleaning spray unit ensures user-friendly operation. It seamlessly adapts to diverse cleaning tasks across various working conditions, delivering consistent, superior results in both large-scale industrial manufacturing environments and outdoor on-site repair operations.

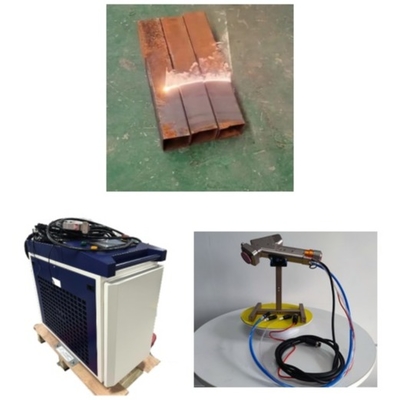

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size 0

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size Features:

Product Name: Fiber Laser Cleaning Machine
Laser Power: 2000W
Standard Focus length: 50 & 500mm standard Focus length adjustable
Cleaning Laser Beam Size: 0-300mm Adjustable
Handheld Laser Gun Weight: 0.7kg
Wavelength: 1064nm~1080nm
Laser Head Connection: QBH
Cleaning Laser Beam Form: Line “一”
Cleaning Materials: Carbon Steel / Stainless Steel
Positioning: Red Guide Beam
Machine Electric Consumption: 8 Kw/h about
Gas: Nitrogen / No Gas

The Fiber Laser Cleaning Nozzle, a premium accessory for fiber lasers with a QBH fiber optic connector, delivers exceptional performance. Weighing just 0.7 kilograms, this lightweight and user-centric tool offers unparalleled ease of use. The diameter of its cleaning laser beam is flexibly adjustable from 0 to 300 millimeters, accommodating a wide range of cleaning requirements. Furthermore, it is outfitted with a red aiming beam to guarantee precise alignment, ensuring accurate and efficient cleaning operations.

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size Technical Parameters:

Product Name	Handheld Laser Cleaning Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Handheld Laser Gun Weight	0.7 KG
Laser Power	2000W
Laser Output Mode	CW
Cleaning Beam Size	0-300mm Adjustable
Cleaning Beam Form	Line " 一 "
Fiber Connector	QBH
Fiber Cable	10m Standard. (15 / 20m Option)
Standard Focus Length	50 & 500mm standard Focus length adjustable
Position Guide	Red Guide Light
Cleaning Parameter Save	10 kinds of different welding parameter save

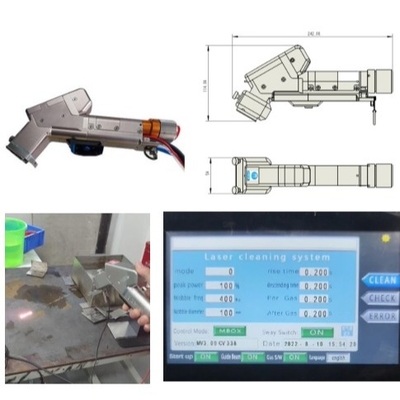

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size 1

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size Application Advantages:

The HanWei HW-20-50500 portable cleaning device offers remarkable practical benefits. Its portability stands out, featuring a sleek and lightweight design that enables easy transportation and quick deployment. This makes it highly suitable for confined spaces and mobile cleaning operations, significantly boosting operational flexibility without relying on complex machinery or extensive manpower.

The handheld single-vibration cleaning probe showcases exceptional adaptability, effectively tackling diverse surface materials, complex object geometries, and varying degrees of soiling. Its performance remains consistent across applications, from vehicle maintenance and household cleaning to industrial equipment servicing. Additionally, it excels in energy and cost efficiency. The single-motor configuration delivers ample cleaning power while minimizing energy consumption. The streamlined design simplifies the cleaning process, saving both time and resources. With fewer components, it incurs lower production and maintenance costs. Its user-friendly interface requires no specialized training, enabling effortless operation for all users and reducing operational errors and training expenses.

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size Packing:

One Handheld Laser Cleaning Head
One Touch Screen Monitor
Two Protective Lens
One 15v Power Supply
One Controller
A set of Connection Cables and Line
One Safety Switch Clip
One Dust Cover
One User Manual

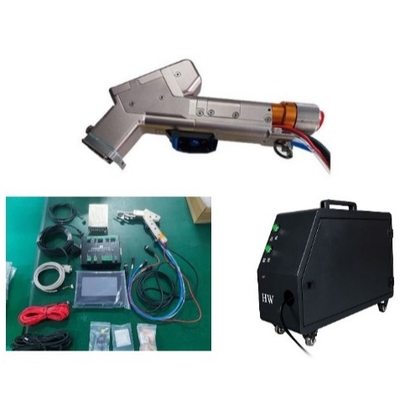

Industrial Handheld Laser Cleaning Machine for Carbon Steel Metals with 0-300mm Beam Size 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. is devoted to delivering world-leading welding technology solutions for global integrators. As one of the limited global enterprises fully engaged in the R&D, production, and promotion of diverse welding lasers, laser control systems, laser optical components, and laser welding processes, it owns a full industrial chain as a national high-tech and specialized-and-innovative enterprise.

Hanwei Laser has successfully developed a suite of welding laser products adhering to international advanced standards. Take the AMB spot-ring spot welding machine as an example, which adopts unique technical methods beyond the reach of other global enterprises. The "AMB spot-ring spot + blue light composite oscillating welding machine" not only bridges a domestic technological gap but also sets the global benchmark in this field. It efficiently resolves challenges such as unstable welding quality, surface irregularities, and spatter during laser welding of highly reflective materials like copper and gold. The "AMB spot-ring spot + semiconductor composite welding machine" tackles issues of inconsistent penetration depth and fluctuating welding speeds in power battery aluminum welding. Furthermore, the "semiconductor + single-lamp single-rod 600W composite laser welding machine" overcomes bottlenecks of low productivity, subpar welding quality, and slow processing speeds in power battery sealing nail welding.
